S1-MERCURY 8.0

DOWNLIGHTS Model S1-MERCURY 8.0 SPECIFICATION LAMP TYPE : LED Circular Downlight HOUSING : Aluminium die-casted + Polycarbonate Plastic REFLECTOR : Aluminium DIFFUSER : – ACCESSORIES : – WIRING : Cable size AWG 20. under 105 C° maximum Voltage 600V, TIS No.11-2531 INPUT VOLTAGE : 220 Vac DIMENSION (Unit of mm.)

S1-DARK REFLECTOR 13.5 CIRCULAR

DOWNLIGHTS Model S1-DARK REFLECTOR 13.5 CIRCULAR SPECIFICATION LAMP TYPE : LED Circular Downlight HOUSING : ALUMINIUM DIE-CASTED + POLYCARBONATE PLASTIC REFLECTOR : Polycarbonate Plastic DIFFUSER : – ACCESSORIES : – WIRING : Cable size AWG 20. under 105 C° maximum Voltage 600V, TIS No.11-2531 INPUT VOLTAGE : 220 Vac DIMENSION (Unit of mm.)

S1-MERCURY 5.5

DOWNLIGHTS Model S1-MERCURY 5.5 SPECIFICATION LAMP TYPE : LED Circular Downlight HOUSING : Aluminium die-casted + Powder coated finished   REFLECTOR : Aluminium DIFFUSER : – ACCESSORIES : – WIRING : Cable size AWG 20. under 105 C° maximum Voltage 600V, TIS No.11-2531 INPUT VOLTAGE : 220 Vac DIMENSION (Unit of mm.)

S1-DARK REFLECTOR 11.5 CIRCULAR

DOWNLIGHTS Model S1-DARK REFLECTOR 11.5 CIRCULAR SPECIFICATION LAMP TYPE : LED Circular Downlight HOUSING : Aluminium die-casted + Polycarbonate Plastic REFLECTOR : Polycarbonate Plastic DIFFUSER : – ACCESSORIES : – WIRING : Cable size AWG 20. under 105 C° maximum Voltage 600V, TIS No.11-2531 INPUT VOLTAGE : 220 Vac DIMENSION (Unit of mm.)

S1-NOVA D1-3

DOWNLIGHTS Model S1-NOVA D1-3 SPECIFICATION LAMP TYPE : LED Circular Downlight HOUSING : Aluminium die-casted + Powder coated finished REFLECTOR : Polycarbonate Plastic DIFFUSER : – ACCESSORIES : – WIRING : Cable size AWG 20. under 105 C° maximum Voltage 600V, TIS No.11-2531 INPUT VOLTAGE : 220 Vac DIMENSION (Unit of mm.)

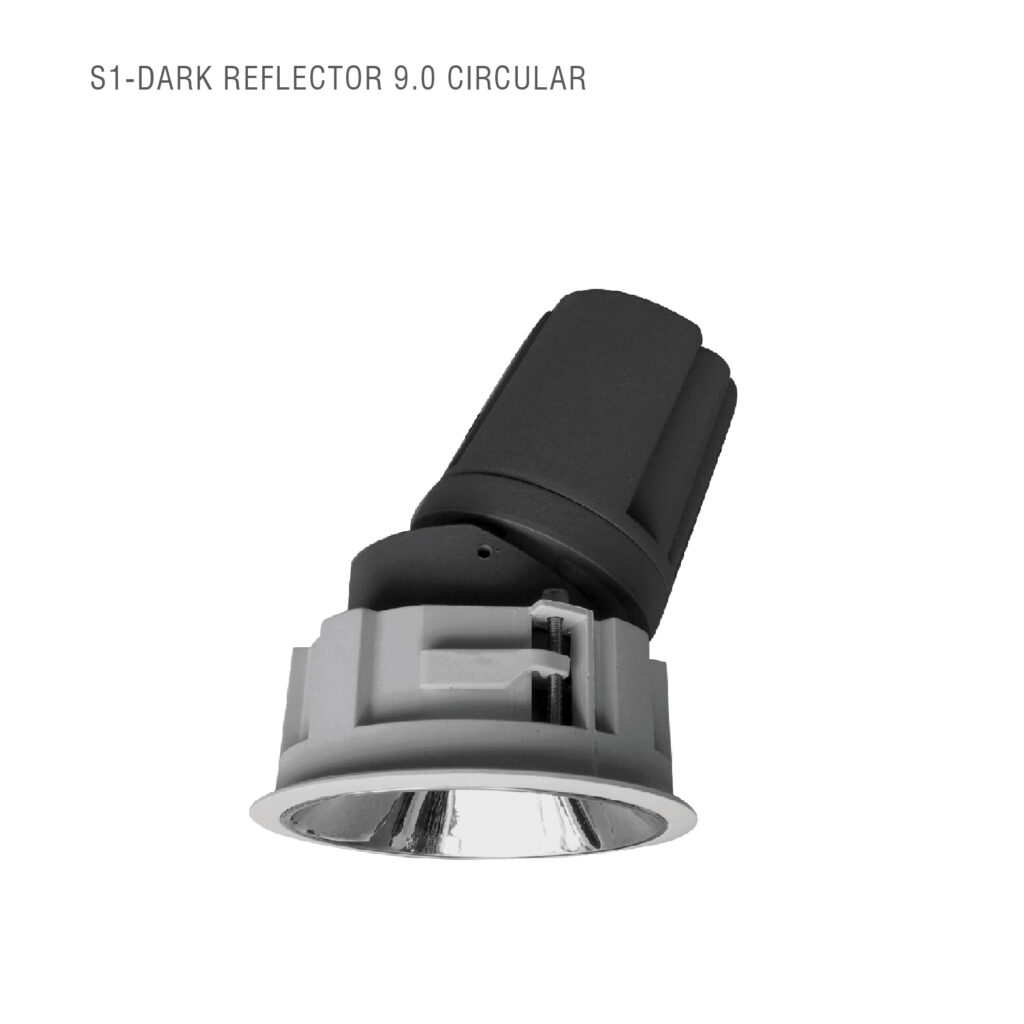

S1-DARK REFLECTOR 9.0 CIRCULAR

DOWNLIGHTS Model S1-DARK REFLECTOR 9.0 CIRCULAR SPECIFICATION LAMP TYPE : LED Circular Downlight HOUSING : Aluminium die-casted + Polycarbonate Plastic REFLECTOR : Polycarbonate Plastic DIFFUSER : – ACCESSORIES : – WIRING : Cable size AWG 20. under 105 C° maximum Voltage 600V, TIS No.11-2531 INPUT VOLTAGE : 220 Vac DIMENSION (Unit of mm.)

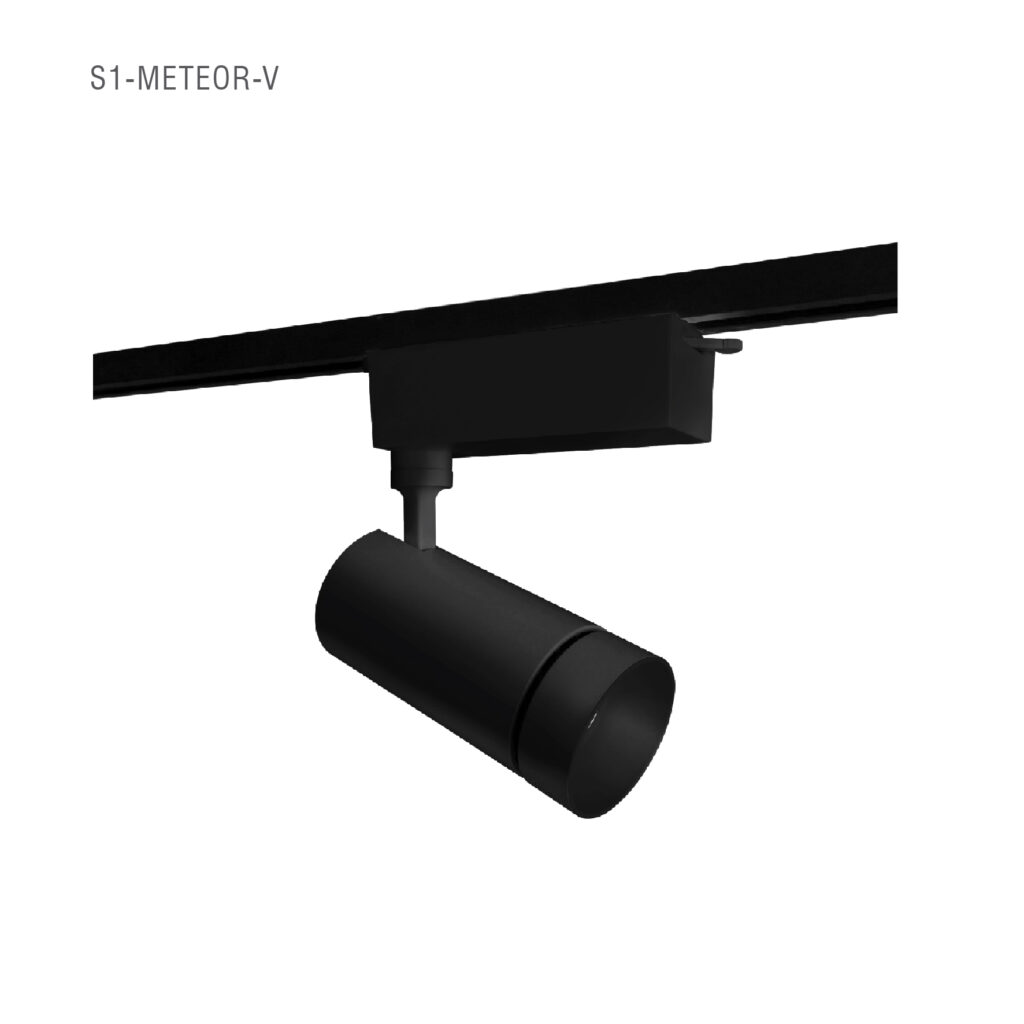

S1-METEOR-V

TRACK LIGHT Model S1-METEOR-V SPECIFICATION LAMP TYPE : LED Tracklight HOUSING : Aluminium die-casted + Powder coated finished REFLECTOR : Aluminium DIFFUSER : None / Clear / Opal diffuser (on requeset) ACCESSORIES : Honey , Beam Filters WIRING : Cable size AWG 20. under 105 Cmaximum Voltage 600V, TIS No.11-2531 DIMENSION (Unit of mm.)

S1-MILKY WAY x2

LINEAR LIGHT Model S1-MILKY WAY x2 SPECIFICATION LAMP TYPE : LED Batten HOUSING : Colod rolled steel, Powder coated finished REFLECTOR : – DIFFUSER : Opal actylic ACCESSORIES : Sling wires for pendent mounted (on request) WIRING : Cable size AWG 20. under 105 Cmaximum Voltage 600V, TIS No.11-2531o Input Voltage : 220Vac DIMENSION (Unit […]

S1-LASER BLADE 1906

LINEAR LIGHT Model S1-LASER BLADE 1906 SPECIFICATION LAMP TYPE : LED LINEAR HOUSING : Aluminum MOUNTED : Recessed mounted LED CHIP : SMD 3014 CRI : >90 POWER : 12W LUMEN : 400lm CCT : 2200°~6500°K TEMPERATURE : -25°C~+60°C DIMENSION (Unit of mm.)

S1-MAGGY LED TUNABLE WHITE

LINEAR LIGHT Model S1-MAGGY LED TUNABLE WHITE SPECIFICATION TYPE : Led Linear HOUSING : Cold rolled steel,Powder coated finished DIFFUSER : PC Cover LED CHIP : VOSSLOH SCHWABE (Germany) WIRING : Cable size AWG 22. under 105°Cmaximum Voiyage 600V,TIS No.11-2531 DIMENSION (Unit of mm.)
